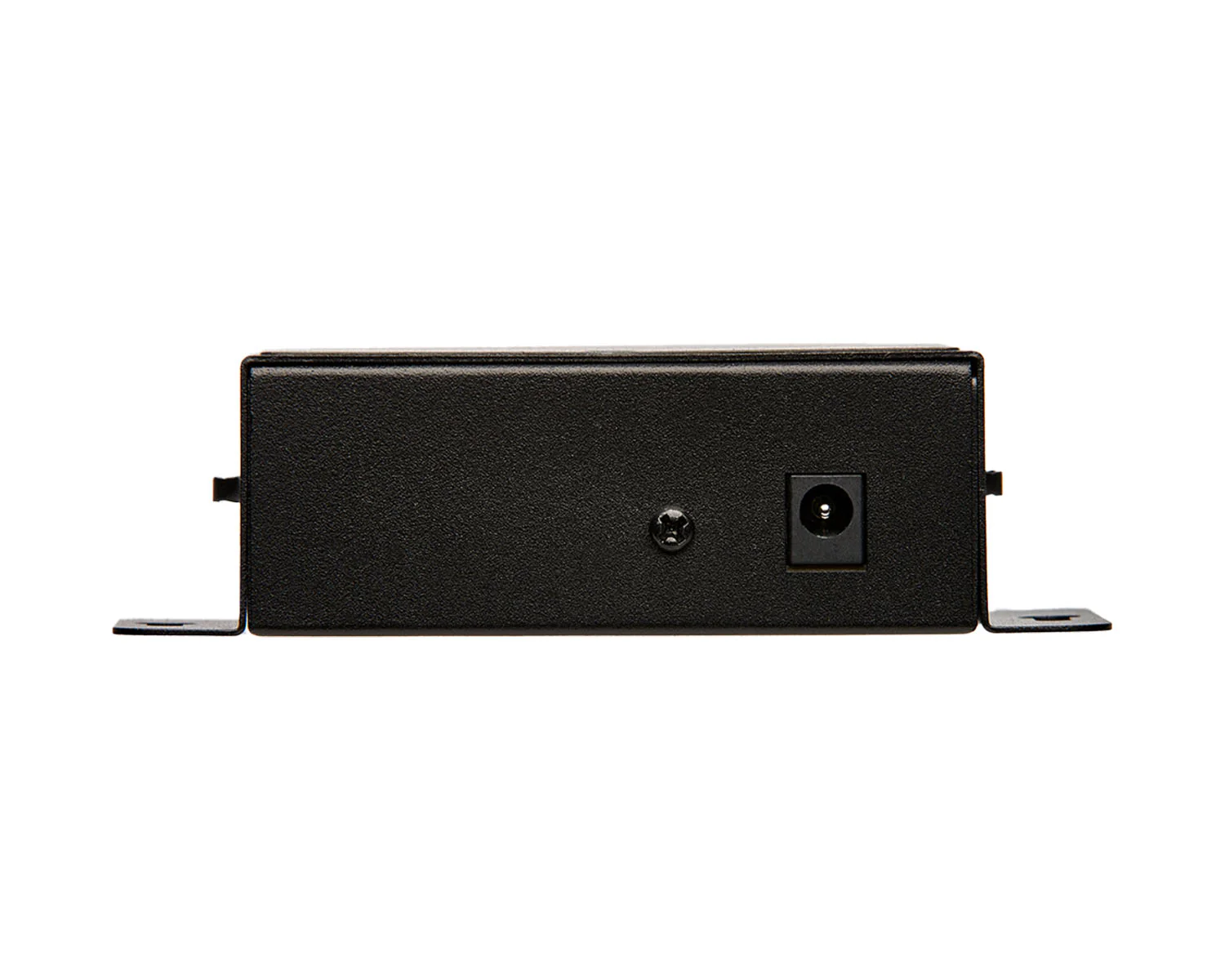

The FPA-1UK was specifically designed as a comprehensive solution for retrospectively connecting Clouds Facility Ported-based accessories, such as: Line-Mic Input plate (LM-2) or Bluetooth Input plate (BT-1) to any system that does not have a Facility Port connector.
Allows for Clouds LE-1, BE-1 & ME-1 Stereo Input Plates to be used on any product with a Line Input. For example; a Bluetooth Facility plate can be connected directly to an existing installed amplifier or mixer.
Alternatively, the FPA-1EX can also be used as a Power Injector for extending the range of a Facility Plate.
- Twin Electronically Balanced Outputs
- RSL Output for use with LM-2 Active Input plate
- 3 x Phoenix Connectors (Degson – 3 pole, 3.5mm Pitch Pole)
20 Hz – 20 kHz @ +/- 0.5dB
12V AC or 12-24V DC
200 mm W x 140 mm H x 80 mm D
116 mm W x 33 mm H x 54 m D
To view additional information, be sure to check out the Data Sheets below.
