Remote Input Plate - In Black

Audac ARESSA WP205 Remote Input Plate – In Black

Recommended Retail Price

£86.00 excl. VAT

The Audac ARESSA WP205 is a Remote Input Plate, in Black (RAL9005) finish, for use in combinatiion with the ARESSA range of Active Speaker Systems. The WP205 works by converting the signal coming from a Stereo Line-Level audio source (such as a tuner, mobile device, or balanced microphone), to the level corresponding to the differential signal input on the ARES5A (RJ45). This makes it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, via inexpensive twisted-pair CAT5e cabling.

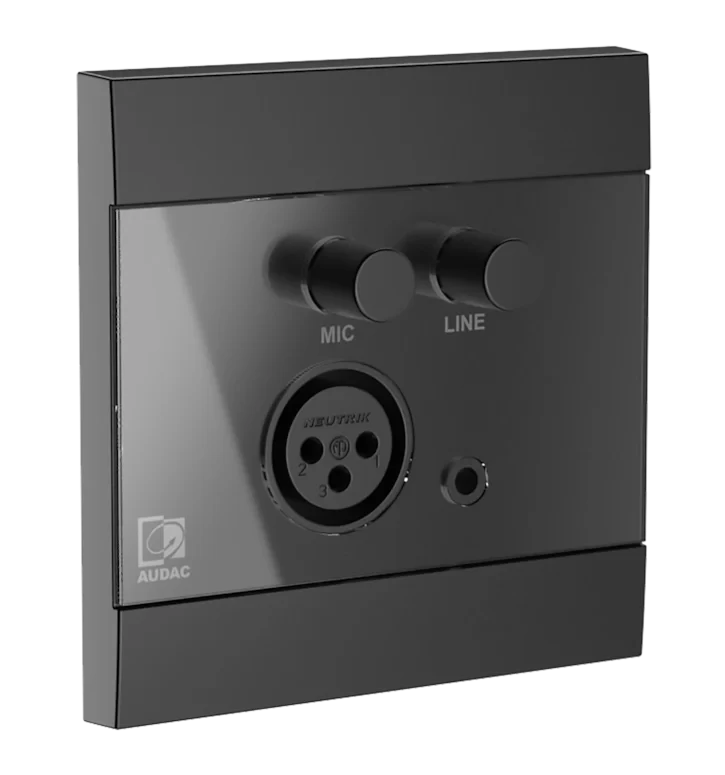

On the front side of the wall panel, there is a 3.5mm Jack Stereo Line input connection available together with a balanced XLR Microphone Input, both provided with their own knob which allows the signals to be mixed together.  This particular model is available in 2 distinct colours; that being White – RAL9003 / Black – RAL9005, and are compatible with most standard EU (80×80 mm) style in-wall boxes for solid and hollow walls. With an Elegant ABS front panel and Acrylic Glass (PMMA) finish, the ARESSA range of Remote Input Plates will blend seamlessly into any environment.

Product Features

  • Elegant design to blend in with any environment
  • Compatible with EU (80×80 mm) installation materials
  • Signal transmission insensitive for interference and noise
  • Signal transmission over twisted pair (CAT5E) or better cabling

Product Specifications

ARESSA WP205/B

Inputs

Wall Panel (Type)
  • XLR microphone input connection
  • 3.5 mm jack stereo line input connection

Outputs

Level: +12 dB

Connection

  • 3.5 mm Jack Input (Stereo Line Input)
  • Female XLR Input Connector (Microphone Input)

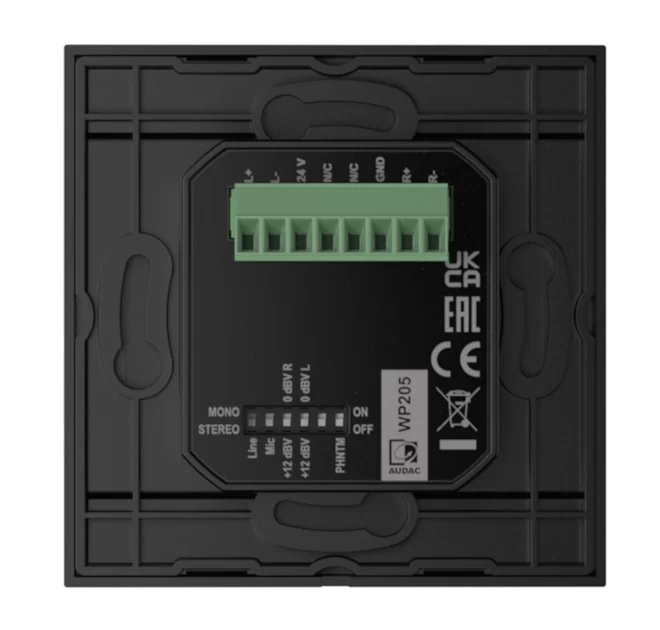

  • 8-pin Terminal Block (3.81 mm pitch) Output Connection

Variants

WP205/W: White RAL9003 version
WP205/B: Black RAL9005 version

Control

  • Mono/Stereo (DIP switch on rear)
  • Phantom Power (DIP switch on rear)
  • Individual Input Level Control for Mic & Line
  • Low-cut (Mic) enable/disable (DIP switch on rear)

Finish

Elegant ABS front panel with Acrylic glass finish (PMMA)

Colour

Black

Weight

N/A

Dimensions

80 mm W x 80 mm H

Accessories (Included)

N/A

Accessories (Optional)

Surface Mount Installation Boxes: WB200 – Surface mount wall box for WP & NWP series.
Flush Mount Installation Boxes: Flush mount box for 45 x 45 mm wall panel – Solid wall – WB45SI/FS, Flush mount box for 45 x 45 mm wall panel – Hollow wall – WB45S/FG.

Documentation

ARESSA WP205 Data Sheet / User Guide
SKU Audac_WP205B Categories ,

Additional information

Manufacturer

Audac

Warranty

5-Year
