Remote Input Plate - In Black (Bluetooth Enabled)

Audac ARESSA WP220 Remote Input Plate – In Black (Bluetooth Enabled)

Recommended Retail Price

£159.00 excl. VAT

The Audac ARESSA WP220 is a Bluetooth Enabled Remote Input Plate, in Black (RAL9005) finish, for use in combination with various AUDAC hardware (ARES5A, MTX series, and AMP523). It’a never been easier connecting your Bluetooth Enabled Device with your audio installation using this wall plate. Connecting your bluetooth-enabled device to this wall plate is exceedingly simple, enabling you to transfer high-quality audio over long distances between the wall panel and the loudspeaker, via inexpensive twisted-pair CAT5e cabling.

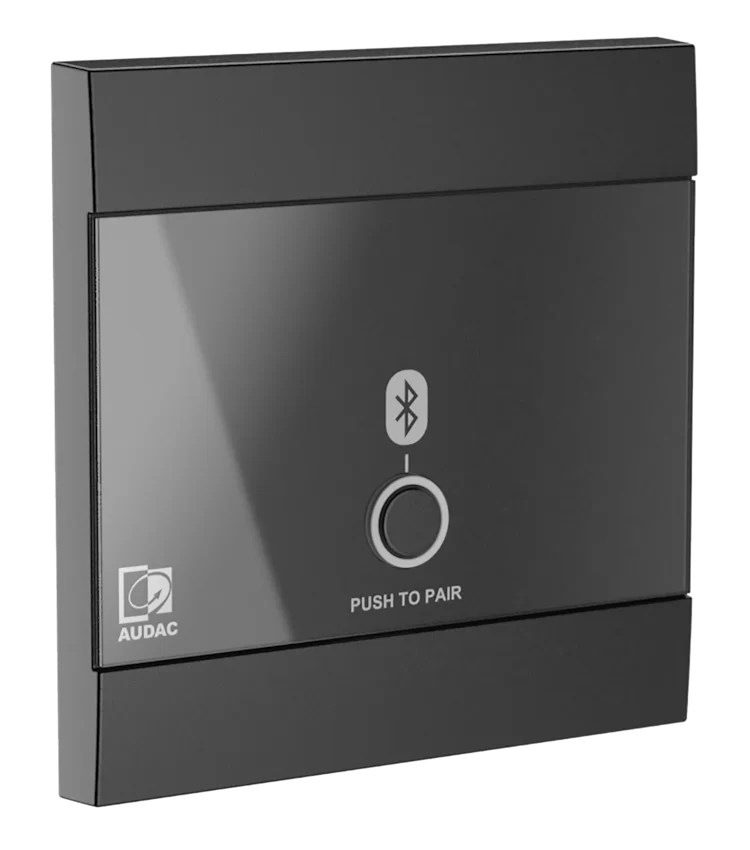

On the front side of the wall panel, you’ll find a Bluetooth pair button with a handy LED indicator to check if its in pairing mode or already connected to a device. The Bluetooth receiver works with iPhones, iPads, iOS & Android smartphones, tablets, PC, Laptops, Desktops, etc. Moreover, Bluetooth pair name can be customised as desired.

This particular model is available in 2 distinct colours; that being White – RAL9003 / Black – RAL9005, and are compatible with most standard EU (80×80 mm) style in-wall boxes for solid and hollow walls. With an Elegant ABS front panel and Acrylic Glass (PMMA) finish, the ARESSA range of Remote Input Plates will blend seamlessly into any environment.

Product Features

  • Elegant design to blend in with any environment
  • Compatible with EU (80×80 mm) installation materials
  • Signal transmission insensitive for interference and noise
  • Signal transmission over twisted pair (CAT5E) or better cabling

Product Specifications

ARESSA WP220/B

Inputs

Wall Panel (Type)
  • Bluetooth Receiver (Version 5.0)

Outputs

Level: +12 dB

Connection

  • 8-pin Terminal Block (3.81 mm pitch) Output Connection

Variants

WP220/W: White RAL9003 version
WP220/B: Black RAL9005 version

Control

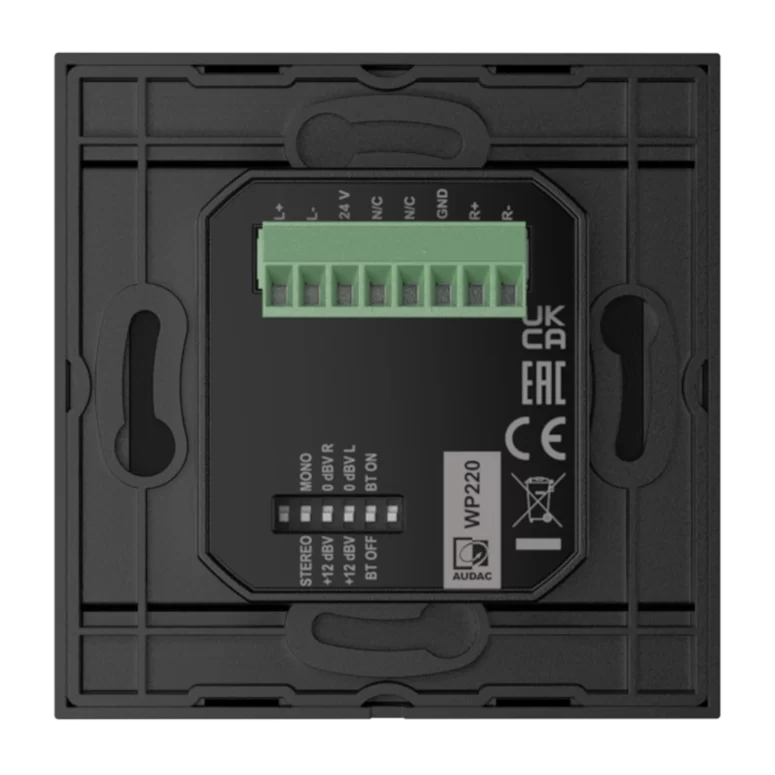

  • Mono/Stereo (DIP switch on rear)
  • Bluetooth pairing button with LED
  • Bluetooth enable/disable (DIP switch on rear)
  • Output Level +12 dBV enable/disable (DIP switch on rear)

Finish

Elegant ABS front panel with Acrylic glass finish (PMMA)

Control

Black

Weight

N/A

Dimensions

80 mm W x 80 mm H

Accessories (Included)

N/A

Accessories (Optional)

Surface Mount Installation Boxes: WB200 – Surface mount wall box for WP & NWP series.
Flush Mount Installation Boxes: Flush mount box for 45 x 45 mm wall panel – Solid wall – WB45SI/FS, Flush mount box for 45 x 45 mm wall panel – Hollow wall – WB45S/FG.

Documentation

ARESSA WP220 Data Sheet / User Guide
SKU Audac_WP220B Categories ,

Additional information

Manufacturer

Audac

Warranty

5-Year

Downloads

If available, product downloads will appear here.
