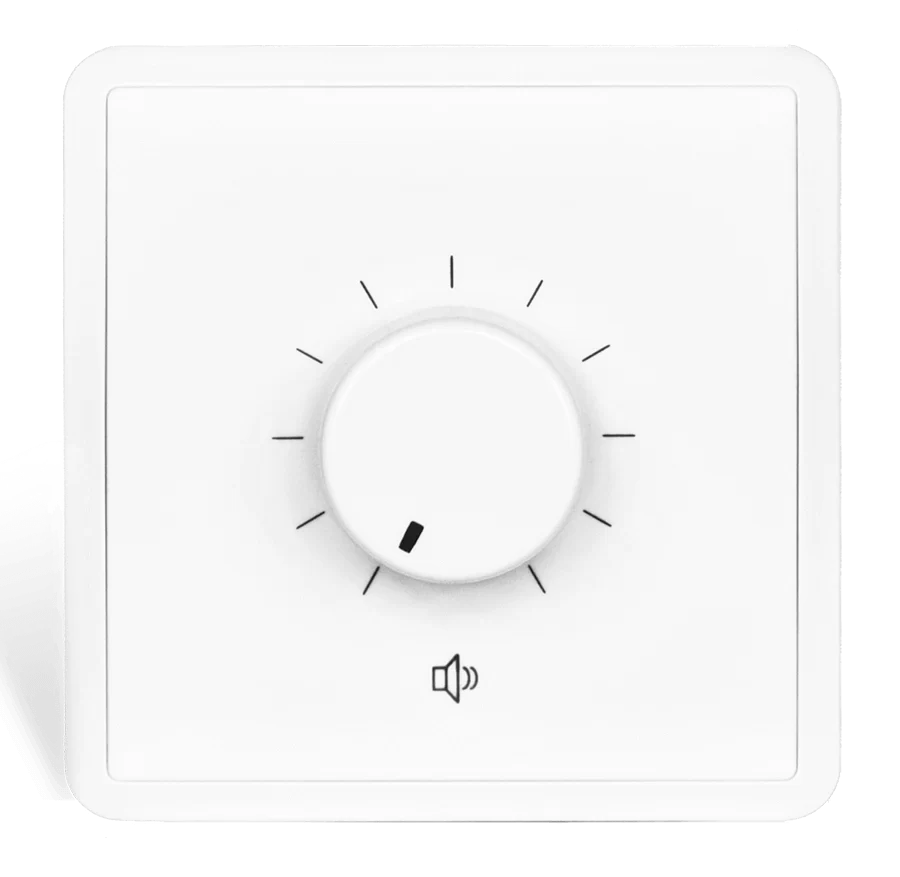

Audac VC3062/W Volume Control Wall Plate (80 x 80mm)

The Audac VC3062/W is a 60W, 100V Volume Control Wall Plate, measuring 80x80mm. This particular controller is part of 3 power ratings, that being 20W, 60W, and 100W. Connected in-line between the amplifier output and the first loudspeaker in the circuit, the volume levels are adjustable with a rotatable 11-step dial. Compatible with all 100V Systems. The VC3xx2 Series are superb Volume Controllers, whereby the volume for 100V Loudspeakers can be adjusted in 11 steps of 3 dB.

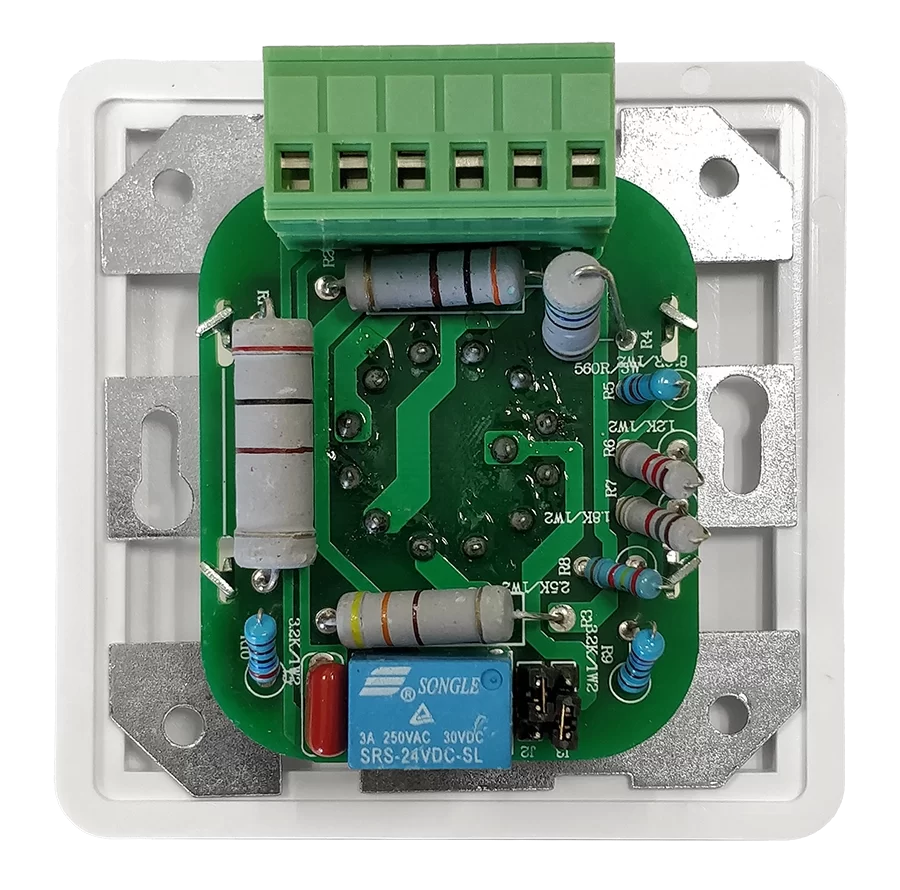

They feature a slim yet modern design, and are constructed out of sturdy ABS, making them suitable for large projects in industrial environments as well as standard home interiors. An integrated 24V relay allows bypassing of the Volume Controller in priority situations, ensuring messages are clearly heard at maximum volume. Connections are made using screw terminal blocks, and flush/surface mount boxes (WB3102-FS/SW) are separately available. See Related Products below.
