Audac COM108 Public Address Mixer Amplifier
Recommended Retail Price
£309.00 excl. VAT

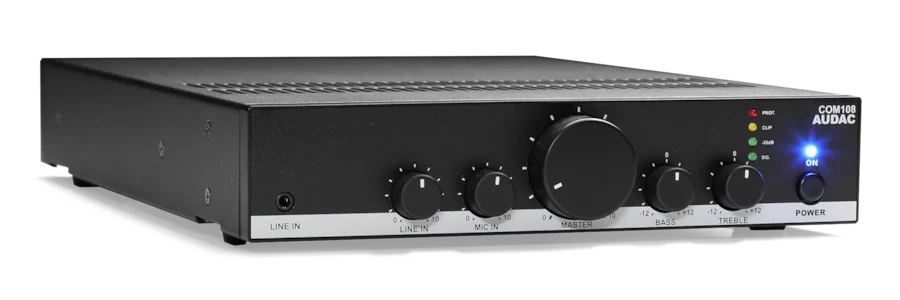

The Audac COM108 is a Public Address Mixer Amplifier, with an output power of 80W to constant voltage (100V and 70V) or low impedance (4 Ohm). Features stereo line and balanced mic/line inputs. Highly efficient, multi-channel public address mixing amplifiers of this nature, provide the ideal solution for small-to-medium sized commercial sound systems.
The different configurations in terms of output power and connectivity grant enormous flexibility. In addition, a compact and simple design allows installation in any location and operation through any possible user. Audac’s range of COM Public Address Amplifiers are designed using Class-D amplifier technology, and can either be used as table-top standing devices or mounted within a rack.
Product Features
- 1 x Microphone input
- 1 x Priority mute contact
- Unbalanced stereo line input
- Lightweight class-D amplifier
- Table top or half rackspace installation
- Priority audio inputs with phantom power
- Low impedance & constant voltage output
- Terminal block output connections (4Ω, 70V, 100V)
Product Specifications | COM108 | COM104 |
|---|---|---|
Frequency Response | 20 Hz – 20 kHz @ ± 3 dB | 20 Hz – 20 kHz @ ± 3 dB |
Inputs | Balanced Microphone:
Unbalanced Stereo:
| Balanced Microphone:
Unbalanced Stereo:
|
Continuous Power (AES) | 1 x 80 W @ 4 Ω | 1 x 40 W @ 4 Ω |
Signal / Noise | > 90 dB | > 90 dB |
Crosstalk @ 1 kHz | > 70 dB | > 70 dB |
THD+N @ 1 kHz | < 0.5% (1/2 Rated Power) | < 0.5% (1/2 Rated Power) |
Power Supply | Switching Mode;Operating: 100 ~ 240V AC / 50 ~ 60 Hz | Switching Mode;Operating: 100 ~ 240V AC / 50 ~ 60 Hz |
Inputs | Balanced Microphone (Phantom Power): 15V DC, priority mute contact | Balanced Microphone (Phantom Power): 15V DC, priority mute contact |

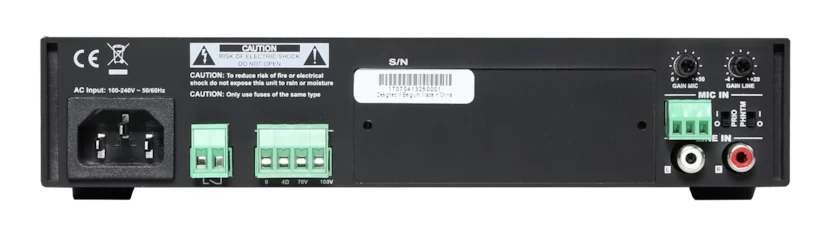

Outputs | Connector: 4-pin Euro Terminal Block (Pitch – 5.08 mm)Voltage/Impedance: 100 / 70V / 4Ω | Connector: 4-pin Euro Terminal Block (Pitch – 5.08 mm)Voltage/Impedance: 100 / 70V / 4Ω |
Protection (Amplifier) | DC Short Circuit, Over Heating, Over Load, Signal Limiting | DC Short Circuit, Over Heating, Signal Limiting |
Cooling | Convection cooled | Convection cooled |
Operating Temperature | 0°C ~ 40°C | 0°C ~ 40°C |
Weight/Dimensions | 3.0 kg / 217.5 mm W x 43.7 mm H x 300 mm D | 3.0 kg / 217.5 mm W x 43.7 mm H x 300 mm D |
Mounting | 1/2 19” / 1 HE or tabletop | 1/2 19” / 1 HE or tabletop |
Documentation | COM108 Data Sheet / User Guide | COM104 Data Sheet / User Guide |
Additional information
| Manufacturer | Audac |
|---|---|
| Warranty | 5-Year |
