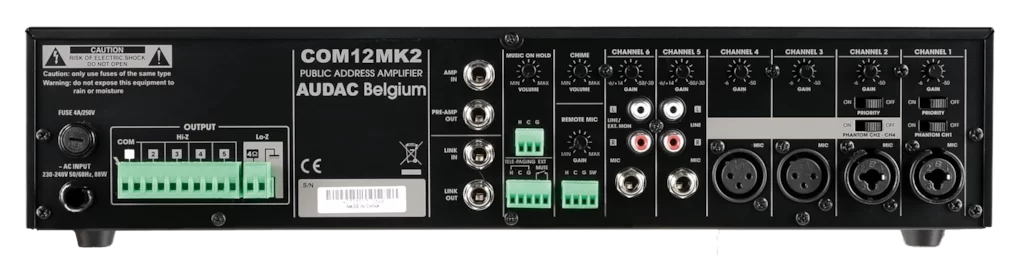

Audac COM12 Public Address Mixer Amplifier
Recommended Retail Price
£599.00 excl. VAT
The Audac COM12 is a Public Address Mixer Amplifier, with an output power of 120W to 100V constant voltage or low impendance (4 Ohm). Features Six input channels with individual level control, four balanced microphone inputs (XLR) containing Phantom Power, and two inputs selectable between stereo balanced line in and microphone. Highly efficient, multi-channel public address mixing amplifiers of this nature, provide the ideal solution for small-to-medium sized commercial sound systems.
The different configurations in terms of output power and connectivity grant enormous flexibility. In addition, a compact and simple design allows installation in any location and operation through any possible user. This particular range of Audac’s ‘COM’ Public Address Amplifiers are designed using Class A/B amplifier technology, and can either be used as table-top standing devices or mounted within a rack.
Product Features
- 6 x Microphone input
- 5-Zone output selector
- Amplifier link in-& outputs
- Table top or 19″ rack installation
- Remote inputs, chime & mute contacts
- Terminal block output connections
- 2 x Unbalanced stereo line inputs
- Priority audio inputs with phantom power
Product Specifications | COM12 | COM24 |
|---|---|---|
Frequency Response | 20 Hz – 20 kHz @ ± 3 dB | 20 Hz – 20 kHz @ ± 3 dB |
Inputs | Balanced Microphone 1-4:
Balanced Microphone 5:
Unbalanced Stereo:
Other:
| Balanced Microphone 1-4:
Balanced Microphone 5:
Unbalanced Stereo:
Other:
|
Outputs | Connector: 2-pin Euro Terminal Block (Pitch – 5.08 mm) & 10-pin Euro Terminal Block (Pitch – 5.08 mm)Voltage/Impedance: 100V / 4Ω | Connector: 2-pin Euro Terminal Block (Pitch – 5.08 mm) & 10-pin Euro Terminal Block (Pitch – 5.08 mm)Voltage/Impedance: 100V / 4Ω |
Continuous Power (AES) | 120W | 240W |
Signal / Noise | >90 dB | >90 dB |
Crosstalk @ 1 kHz | >70 dB | >70 dB |
THD+N @ 1 kHz | <0.5% | <0.5% |
Power Supply | Transformer;Source: 230 ~ 240V AC / 50 ~ 60 HzCommon mode rejection ratio: 70 dB | Transformer;Source: 230 ~ 240V AC / 50 ~ 60 HzCommon mode rejection ratio: 70 dB |
Protection (Amplifier) | DC Short circuit, Over heating, Over load, Signal limiting | DC Short circuit, Over heating, Over load, Signal limiting |
Construction | Steel | Steel |
Cooling | Convection cooled | Convection cooled |
Operating Temperature | 0°C ~ 40°C | 0°C ~ 40°C |
Weight/Dimensions | 9.7 kg / 420 mm W x 88 mm H x 320 mm D | 11.0 kg / 420 mm W x 88 mm H x 320 mm D |
Mounting | 19” / 2 HE or tabletop | 19” / 2 HE or tabletop |
Documentation | COM12 Data Sheet / User Guide | COM24 Data Sheet / User Guide |
Additional information
| Manufacturer | Audac |
|---|---|
| Warranty | 5-Year |
