Dual-Channel Power Amplifier (2 x 480W / 100V)

Audac CAP248 Dual-Channel Power Amplifier (2 x 480W / 100V)

Recommended Retail Price

£969.00 excl. VAT

The Audac CAP248 is a Dual-Channel Power Amplifier, boasting an output power of 480W across two channels, and designed for use in any 100V PA System. With integrated Class-D technology, in combination with switching power supplies, the CAP248 provides marked efficiency and reliability. More importantly, the dual-channel capability of CAP amplifiers allows you to create a flexible solution for multi-zone Audio Distribution Systems, across two independent zones.

Audac’s CAP range has been expertly designed as no-nonsense Power Amplifiers, including only the necessary controls and connections, ensuring simplicity in use and installation. A temperature controlled fan constantly keeps all parts within the right operation range, while avoiding excessive buzz. A built-in multipurpose protection circuit protects against DC Malfunction, Short Circuit, Overheating, Overload, and limits the signal when necessary.

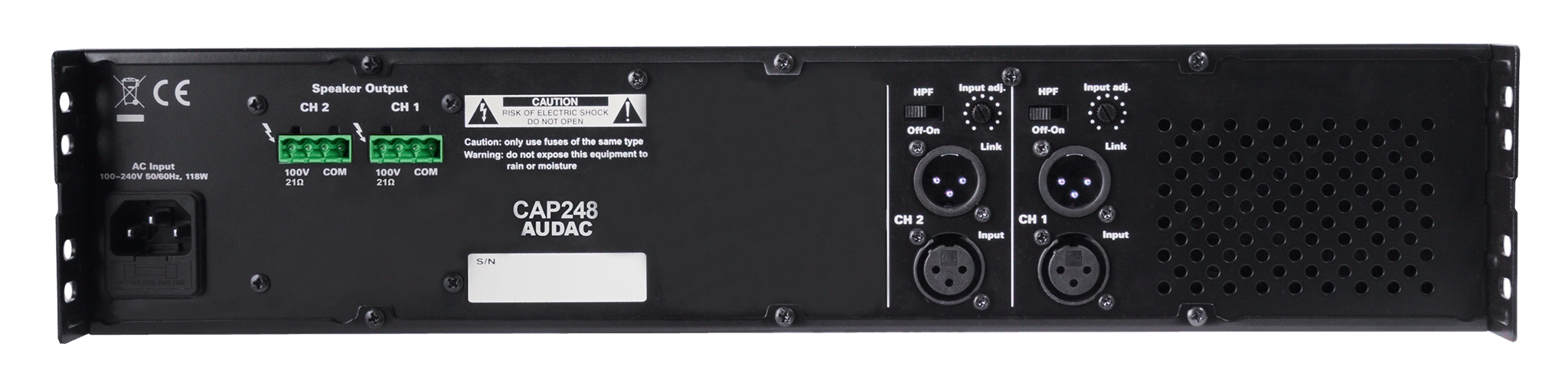

Input connections are performed using balanced XLR connectors; link output connectors are provided for link-through to other amplifiers. Besides, a high-pass filter switch (400 Hz) and a Gain adjustment potentiometer are provided for each channel. In respect to output connections, these are performed using reliable terminal block connectors. This is all housed into a solidly constructed 2 HE double rack space/19” rack mounting housing. To view the Quad-Channel version of the Audac CAP Power Amplifier range, click here.

Product Features

  • High-pass filter switch
  • Advanced protection circuit
  • Lightweight class-D amplifier
  • Terminal block output connections
  • XLR input & linkthrough connections with gain control & HPF switch

Product Specifications

CAP248

CAP224

Frequency Response

50 Hz – 22 kHz @ ± 3 dB
50 Hz – 22 kHz @ ± 3 dB

Continuous Power (AES)

2 x 480W
2 x 240W

Signal / Noise

>100 dB
>100 dB

Crosstalk @ 1 kHz

<80 dB
<80 dB

THD+N @ 1 kHz

<0.3% (1/2 Rated Power)
<0.3% (1/2 Rated Power)

Power

Supply: Switching mode
Source: 230 ~ 240V AC / 50 Hz
Supply: Switching mode
Source: 230 ~ 240V AC / 50 Hz

Inputs

Sensitivity: -0.5 dB ~ 10.5 dB
Impedance: 10 kΩ balanced
Connector: XLR female with Male Linkthrough
Sensitivity: -0.5 dB ~ 10.5 dB
Impedance: 10 kΩ balanced
Connector: XLR female with Male Linkthrough

Outputs

Voltage / Impedance: 100V / 21Ω
Connector: 4-pin Euro Terminal Block (Pitch – 5.08 mm)
Voltage / Impedance: 100V / 42Ω
Connector: 4-pin Euro Terminal Block (Pitch – 5.08 mm)

Operating Temperature

0°C ~ 40°C
0°C ~ 40°C

Protection

DC Short Circuit, Over Heating, Over Load, Signal Limiting
DC Short Circuit, Over Heating, Over Load, Signal Limiting

Weight

7.5 kg
7.2 kg

Dimensions

482 mm W x 88 mm H x 420 mm D
482 mm W x 88 mm H x 420 mm D

Accessories (Included)

  • 2 x 4-pin Euro Terminal Block outputs connector
  • 2 x 4-pin Euro Terminal Block outputs connector

Accessories (Optional)

  • CPE100 Rack Mount Handles
  • CPE100 Rack Mount Handles

Documentation

CAP248 Data Sheet / User Guide
CAP224 Data Sheet / User Guide
SKU Audac_CAP248 Categories ,

Additional information

Manufacturer

Audac

Warranty

5-Year
