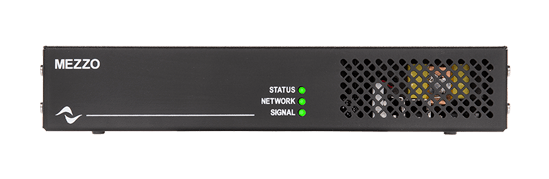

Powersoft Mezzo-602AD 2-Channel DSP & Dante Amplifier
POA: Call 0191 414 4241
The Powersoft Mezzo-602A is a 600W 2-Channel Amplifier, which heralds the same levels of reliability, build quality, and acoustic properties of any Powersoft amplifier platform, in half the size. Exceedingly flexible, “A” versions of Mezzo offer remote control and monitoring of all the vital functions. It also comes with state-of-the-art DSP and Dante integration, as well as 2 channels of output. All models offer multiple analog input options.
The compact form factor allows it to be mounted anywhere thanks to the included mounting kit. Two channel versions, such as this, feature 2 line-level outputs, further extending routing options. AD versions grant you the ability to accept DanteTM/AES67 AoIP protocols; an internal Gigabit Ethernet switch and a second port allow daisy-chaining of multiple devices within the same network. The unique Auto Setup function allows Mezzo to optimize the gain, limiters, and high pass filter for the connected loudspeakers with a simple push of a button.
Product Features
- Auto-Setup
- Power-sharing
- Multiple mounting options
- Full remote control via 3rd party controls
Product Specifications | Mezzo-602AD | Mezzo-602A |
|---|---|---|
Frequency Response | 20Hz – 20kHz +/-0.5 dB | 20Hz – 20kHz +/-0.5 dB |
Output Channels | 2; Euro 5 mm | 2; Euro 5 mm |
Line Level Outputs | 2; Euro 3.8 mm | 2; Euro 3.8 mm |
Input Sensitivity | 4 dBu (balanced) | -10 dBV (unbalanced) | 4 dBu (balanced) | -10 dBV (unbalanced) |
Input Impedance | 10KΩ to GND / 20kΩ balanced | 10KΩ to GND / 20kΩ balanced |
Balanced/Unbalanced Inputs | Balanced: 2; Euro 3.8 mmUnbalanced: 2; Stereo mini-jack | Balanced: 2; Euro 3.8 mmUnbalanced: 2; Stereo mini-jack |
AES67/Dante Output Channels | AES67: 4 (A+ versions only)Dante/AES67: 4 (AD versions only) | AES67: 4 (A+ versions only)Dante/AES67: 4 (AD versions only) |
AC Mains Connector | IEC 10A | IEC 10A |
Operating Voltage | 90-264 VAC @ 50/60 Hz | 90-264 VAC @ 50/60 Hz |
Nominal Voltage (±10%) | 100-240 VAC @ 50-60Hz | 100-240 VAC @ 50-60Hz |
Crosstalk (1 kHz) | -60dB | -60dB |
Power Supply | Universal, Regulated switch mode with PFC (Power Factor Correction), SRM | Universal, Regulated switch mode with PFC (Power Factor Correction), SRM |
CMRR | 60 dB (Typ) | 60 dB (Typ) |
Network/Network Modes | Network: 2 x RJ45 Fast EthernetNetwork Modes: Switched: Both ports connected with an integrated switch. Supports forwarding of gigabit traffic. Split: One port for Control/Monitoring, 1 port for audio | Network: 1 x RJ45 Fast EthernetNetwork Modes: Control/Monitoring only |
Weight & Dimensions | 2.6 kg210 mm W x 275 D x 40 mm H | 2.6 kg210 mm W x 275 D x 40 mm H |
Data Sheet
Powersoft_Mezzo-602AD Meta Data:
Additional information
| Manufacturer | Powersoft |
|---|---|
| Pricing | Available upon request |
