Description

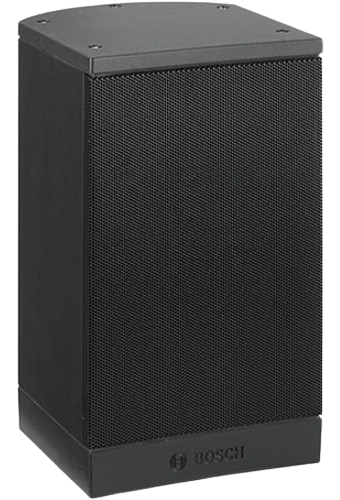

The Bosch LB1-UM20E-D is a EN54-24 premium Cabinet Loudspeaker – rated at 20W, and suitable for any and all clear reproductions of Speech, Foreground and Background music.
‘Integral Safety’ features ensure that the LB1-UM20E-D is compliant with EN54-24 (for use in Emergency Voice Evacuation systems.) The selectable inputs vary between 70V, 100V Line & 8Ω.
Product Features:
- Finish: Charcoal
- EN 54‐24 certified
- Self‐restoring overload protection
- High-fidelity Music & Speech reproduction
- Supplied with adjustable wall‐mounting bracket
Specifications:
LB1-UM20E-D | LB1-UM20E-L | |
|---|---|---|
Maximum Power | 30W | 30W |
Rated Power | 20W | 20W |
Sound Pressure Level | 101 / 88 dB (SPL) | 101 / 88 dB (SPL) |
Effective Frequency Range (-10 dB) | 90 Hz to 20 kHz | 90 Hz to 20 kHz |
Operating Angle (-6 dB) | Vertical: 127° / 141°Horizontal: 174° / 136° | Vertical: 127° / 141°Horizontal: 174° / 136° |
Rated Input Voltage | 12.65/70/100V | 12.65/70/100V |
Rated Impedance | 8/250/500Ω | 8/250/500Ω |
Transducer | 134.5 mm or 5″ Woofer, with a 25.4 mm or 1″ Dome Tweeter | 134.5 mm or 5″ Woofer, with a 25.4 mm or 1″ Dome Tweeter |
Relative Humidity | <95% | <95% |
Connector |
|
|
Operating Temperature | -25 ºC to +55ºC | -25 ºC to +55ºC |
Finish | Charcoal (RAL 7021) | White (RAL 9010) |
Dimensions | 274 mm H x 160 mm W x 180 mm D | 274 mm H x 160 mm W x 180 mm D |
Weight | 3.88 kg | 3.88 kg |
Accessories (Included) |
|
|
