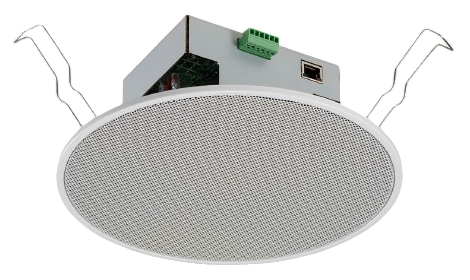

TOA IP-A1PC238 6″ IP Ceiling Speaker

£370.00 EX VAT

Description

The TOA IPA1PC238 is a superb 6″ IP Ceiling Speaker. Based on open standards, the IP-A1PC238 IP Ceiling Speaker plug right into standard IP networks and can be easily integrated into your video management system (VMS) or SIP-based communication system. A single standard network cable provides both power and connectivity with your network.

The IP-A1PC238 IP Ceiling Speaker comes with a built-in 8 W power amplifier and spring clamps for easy and quick installation. Its light weight and universal applicable diameter enable a variety of indoor applications.

Product Features:

  • 2 control inputs and 1 control output
  • 8W built-in amplifier, 1 LINE audio output
  • 16cm (6”) cone-type speaker for in-ceiling installations
  • 1 audio input (LINE/MIC selectable, Phantom Power on/off)
  • Receive SIP audio, ONVIF Audio Backchannel, and Multicast
  • Local broadcast using internal audio files or local audio source

Product Applications:

  • Hotels
  • Office buildings
  • Shopping centres
  • Conference rooms
  • Educational facilities
  • Video management systems

Specifications:

IP-A1PC238

Power Source

PoE

Current Consumption

12.95W (Rated Output)

Frequency Response

60 Hz – 20 kHz

Sensitivity (1W, 1m)

94 dB (500 Hz – 5 kHz, Pink Noise)

Rated Output

8W

Max. SPL

103 dB (8W)

Speaker Component

16 cm cone-type

Mounting Hole

⌀ 200 ± 2 mm

Ceiling Thickness

5 – 25 mm

Audio Codec

***i22702***v

Network Audio I/F

***i22737***

Network Control I/F

***i22738***

Network I/F

1x 100BASE-TX (RJ45)

Network Protocol

TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261)

Internal Audio Files

***i22741***

Clock Accuracy

***i22728***

Time Adjustment

***i22751***

Control Input

2x no-voltage make contact (terminal block)

Control Output

1x Open Collector (terminal block)

Finish

Traffic White / RAL 9016 or equivalent
  • Grille: Steel net, traffic white (RAL 9016 or equivalent)
  • Frame: Steel plate, traffic white (RAL 9016 or equivalent)

Operating Temperature

0 °C to +50 °C

Operating Humidity

90 % RH or less (No Condensation)

Weight

880g

Dimensions

230 mm Ø x 89 mm D

Accessories (Included)

  • Pattern Paper, x1
  • Removable Terminal Plug (6 pins, preinstalled on the unit), x1

To view additional information, be sure to check out the Data Sheets below.

Data Sheets

Data Sheet
