£50.33 excl. VAT

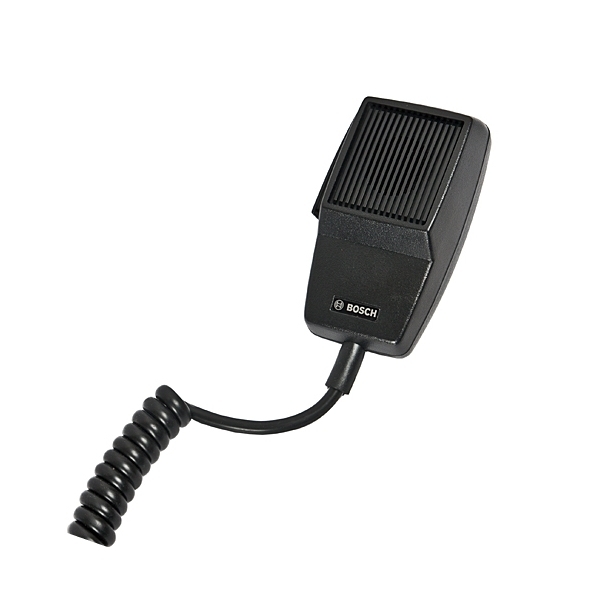

The Bosch LBB 9080/00 is a superb Handheld Omnidirectional Dynamic Fist Microphone, designed for use in close talking situations; typically short announcements. This microphone also boasts a press-to-talk (PTT) switch on the side.
Included switch contain additional contacts for Remote Control functions (if required). Resistors are already mounted in the switch circuit for supervision, and the microphone capsule is direct-connected, i.e. not switched.
Please Note: This is a variant of the LBB908*/00 range — like the Bosch LBB9081/00 which features a 5-pin CB (lockable) connector. With this LBB9080/00, you’ll find a 5-pin 180° DIN (lockable) connector instead.
Product Specifications | LBB 9080/00 |
|---|---|
Frequency Response | 280 Hz to 14 kHz |
Microphone Type | Handheld |
Rated Output Impedance | 500Ω |
Sensitivity | 3.1 mV/Pa, ±4 dB |
Connectors | 5-pin 180° DIN (Lockable) |
Polar Pattern | Omnidirectional |
Relative Humidity | <95% |
Cabling | Type: 2-core + 2-core screened (coiled)Length: 0.5 m |
Finish | Black |
Operating Temperature | 25 °C to +55 °C |
Weight | Approx: 190 g |
Dimensions | 103 mm H x 62 mm W x 43 mm D |
| Manufacturer | Bosch |
|---|
