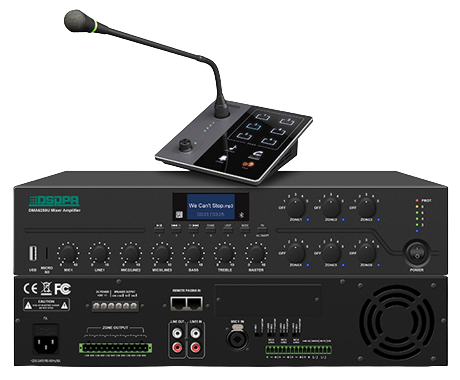

ADS DMA6350U 6-Zone Digital Mixer Amplifier & Remote Paging Unit

£918.10 EX VAT

Description

The ADS DMA6350U is a superb 350W Digital Mixer Amplifier, which can be used in conjunction with the DMA20 Remote Paging Station; supporting 2-channel RJ-45 remote paging microphones.

Features an intuitive display, with input sources including: 4 MIC, 4 AUX, USB, FM, Bluetooth and TF. It also provides protection function when overload, clipping, short circuit and abnormal working temperatures occur.

Product Features:

  • Built-in Bluetooth, FM, MP3 playback
  • Independent volume adjustment knob of six zones
  • Two-channel RJ-45 remote paging microphone interfaces

Specifications:

DMA6350U

DMA6250U

DMA6500U

DMA6650U

Frequency Response

MIC = 120Hz~12kHz @ ±3dB
MIC = 120Hz~12kHz @ ±3dB
MIC = 120Hz~12kHz @ ±3dB
MIC = 120Hz~12kHz @ ±3dB

Frequency Response

AUX = 80Hz~15kHz @ ±3dB
AUX = 80Hz~15kHz @ ±3dB
AUX = 80Hz~15kHz @ ±3dB
AUX = 80Hz~15kHz @ ±3dB

Input Sensitivity

MIC1: 10mV ±1mv (Balanced XLR Input)
MIC2/3/4: 10mV ±1mv (Unbalanced Phoenix Jacks)
AUX1: 350mV ±50mv (Unbalanced RCA Input)
AUX2: 350mV ±50mv (Unbalanced Phoenix Jacks)
EMC: 350mV ±50mv (Unbalanced Phoenix Jacks)
MIC1: 10mV ±1mv (Balanced XLR Input)
MIC2/3/4: 10mV ±1mv (Unbalanced Phoenix Jacks)
AUX1: 350mV ±50mv (Unbalanced RCA Input)
AUX2: 350mV ±50mv (Unbalanced Phoenix Jacks)
EMC: 350mV ±50mv (Unbalanced Phoenix Jacks)
MIC1: 10mV ±1mv (Balanced XLR Input)
MIC2/3/4: 10mV ±1mv (Unbalanced Phoenix Jacks)
AUX1: 350mV ±50mv (Unbalanced RCA Input)
AUX2: 350mV ±50mv (Unbalanced Phoenix Jacks)
EMC: 350mV ±50mv (Unbalanced Phoenix Jacks)
MIC1: 10mV ±1mv (Balanced XLR Input)
MIC2/3/4: 10mV ±1mv (Unbalanced Phoenix Jacks)
AUX1: 350mV ±50mv (Unbalanced RCA Input)
AUX2: 350mV ±50mv (Unbalanced Phoenix Jacks)
EMC: 350mV ±50mv (Unbalanced Phoenix Jacks)

Treble

10dB (±2)
10dB (±2)
10dB (±2)
10dB (±2)

Bass

10dB (±2)
10dB (±2)
10dB (±2)
10dB (±2)

Phantom Power

+48V
+48V
+48V
+48V

Rated Output Power

350W
250W
500W
650W

Port Output Voltage

4-16Ω, 70/100V
4-16Ω, 70/100V
4-16Ω, 70/100V
4-16Ω, 70/100V

THD

<1%
<1%
<1%
<1%

Current

3A
2A
3A
4A

Protection

F6.3AL
F3.15AL
F6.3AL
F8AL

Dimensions

Machine = 430 mm D × 390 mm W × 88 mm H
Machine = 430 mm D × 390 mm W × 88 mm H
Machine = 430 mm D × 390 mm W × 88 mm H
Machine = 430 mm D × 390 mm W × 88 mm H

Dimensions

Package = 545 mm D × 500 mm W × 165 mm H
Package = 545 mm D × 500 mm W × 165 mm H
Package = 545 mm D × 500 mm W × 165 mm H
Package = 545 mm D × 500 mm W × 165 mm H

Weight

Net = 9.0 kg
Net = 8.6 kg
Net = 10.1 kg
Net = 11.0 kg

Weight

Shipping = 10.2 kg
Shipping = 9.8 kg
Shipping = 11.3 kg
Shipping = 12.2 kg

Accessories (Included)

N/A
N/A
N/A
N/A

Accessories (Optional)

N/A
N/A
N/A
N/A

To view additional information, be sure to check out the Data Sheets below.

Data Sheets

Brochure
Data Sheet
