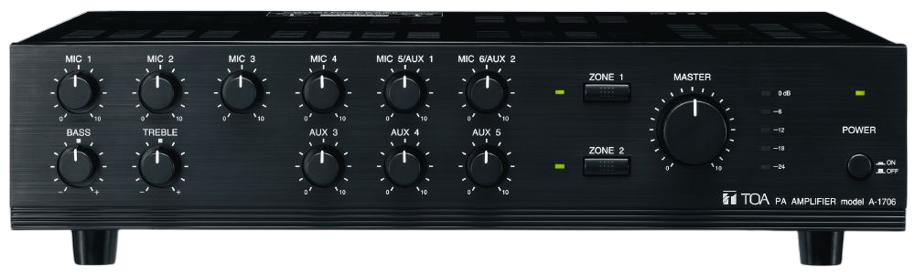

TOA A-1706 Mixer Amplifiers

£276.00 ex VAT.

RRP: £345.00 ex VAT.20% discount, that's a saving of £69.00!

Out of stock

Description

Product Features:

  • 6 MIC inputs
  • Recording output
  • 3 versions available: 60W, 120W or 240W
  • User-friendly front panel allows easy operation
  • One of 3 different program sources can be broadcasted
  • AUX-1, 2, 3 inputs for tuner, cd player or other BGM sources
  • Individual zone speaker selection buttons enable broadcasting to 2 separate zones
  • High-quality circuitry for wide frequency response (e.g. for CD music sources & hook-up of FGM/BGM speakers)

Application Examples:

  • Auditoriums
  • Office buildings
  • Houses of worship
  • Educational facilities

Specifications:

A-1706

A-1712

A-1724

Power source

220 – 230 V AC
50/60 Hz
220 – 230 V AC
50/60 Hz
220 – 230 V AC
50/60 Hz

Rated output

60 W
120 W
240 W

Frequency response

50 Hz – 20 kHz (±3 dB)
50 Hz – 20 kHz (±3 dB)
50 Hz – 20 kHz (±3 dB)

Distortion

< 2 % @ 1 kHz, rated power
< 2 % @ 1 kHz, rated power
< 2 % @ 1 kHz, rated power

Power consumption

150 W max.
258 W
532 W

Current consumption

or less
or less
or less

S/N ratio

100 dB (Master volume: min)
100 dB (Master volume: min)
100 dB (Master volume: min)

Number of channels

1
1
1

Connectable microphones

6
6
6

Inputs

Mic 1 – 6: -60 dBV, 600 Ohm, electronically-balanced, combined type of XLR-3-31 equivalent and phone jack
AUX 1 & 2: -20 dBV, 600 Ohm, electronically-balanced, combined type of XLR-3-31 equivalent and phone jack
AUX 3 & 4: -20 dBV, 10 kOhm, unbalanced, RCA pin jack
AUX 5: -20 dBV, 10 kOhm, unbalanced, combined type of XLR-3-31 equivalent and phone jack
  • Either MIC 5 or AUX 1, and either MIC 6 or AUX 2 selectable
PWR AMP IN:
  • 0 dBV, 600 Ohm, unbalanced, RCA pin jack (An equalizer or other signal processor connectable between LINE OUT and PWR AMP IN terminals)
Mic 1 – 6: -60 dBV, 600 Ohm, electronically-balanced, combined type of XLR-3-31 equivalent and phone jack
AUX 1 & 2: -20 dBV, 600 Ohm, electronically-balanced, combined type of XLR-3-31 equivalent and phone jack
AUX 3 & 4: -20 dBV, 10 kOhm, unbalanced, RCA pin jack
AUX 5: -20 dBV, 10 kOhm, unbalanced, combined type of XLR-3-31 equivalent and phone jack
  • Either MIC 5 or AUX 1, and either MIC 6 or AUX 2 selectable
PWR AMP IN:
  • 0 dBV, 600 Ohm, unbalanced, RCA pin jack (An equalizer or other signal processor connectable between LINE OUT and PWR AMP IN terminals)
Mic 1 – 6: -60 dBV, 600 Ohm, electronically-balanced, combined type of XLR-3-31 equivalent and phone jack
AUX 1 & 2: -20 dBV, 600 Ohm, electronically-balanced, combined type of XLR-3-31 equivalent and phone jack
AUX 3 & 4: -20 dBV, 10 kOhm, unbalanced, RCA pin jack
AUX 5: -20 dBV, 10 kOhm, unbalanced, combined type of XLR-3-31 equivalent and phone jack
  • Either MIC 5 or AUX 1, and either MIC 6 or AUX 2 selectable
PWR AMP IN:
  • 0 dBV, 600 Ohm, unbalanced, RCA pin jack (An equalizer or other signal processor connectable between LINE OUT and PWR AMP IN terminals)

Outputs

REC: 0 dBV, 600 Ω, unbalanced, RCA pin jack
SPEAKER: 100 V (167 Ω), 4 – 16 Ω
REC: 0 dBV, 600 Ω, unbalanced, RCA pin jack
SPEAKER: 100 V (83 Ω), 4 – 16 Ω
REC: 0 dBV, 600 Ω, unbalanced, RCA pin jack
SPEAKER: 100 V (42 Ω), 4 – 16 Ω

Finish

Steel plate, ABS resin, hairline, black
Steel plate, ABS resin, hairline, black
Steel plate, ABS resin, hairline, black

Dimensions

420 x 107.7 x 367 mm (W x H x D)
420 x 107.7 x 367 mm (W x H x D)
420 x 107.7 x 367 mm (W x H x D)

Weight

9.3 kg
12.6 kg
13.5 kg

Accessory (included)

  • Power cord, x1
  • Terminal block cover, x1
  • Terminal block cover mounting screw, x2
  • Power cord, x1
  • Terminal block cover, x1
  • Terminal block cover mounting screw, x2
  • Power cord, x1
  • Terminal block cover, x1
  • Terminal block cover mounting screw, x2

Data Sheets

Brochure
Data Sheet

Additional information

Manufacturer

TOA
