Clever Little Box LB8A Digital Audio Storage & Replay Unit

£340.36 EX VAT

Description

The Clever Little Box LB-8A is a sophisticated Digital Audio Storage & Replay Unit, providing a digital audio store & replay solution for integration into installed Audio/PA systems. It is easy to use and is compatible with virtually any sound system with an auxiliary or line level input.

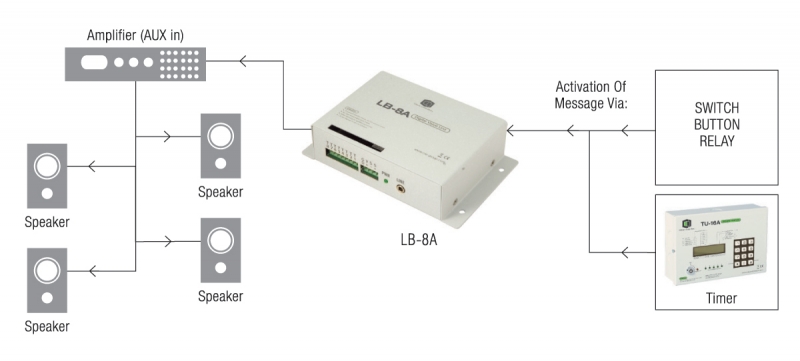

The LB8A Store & Replay Unit uses an internal 4GB SD Card to store and furthermore replay a choice of 8 different recorded messages/tones – which are then activated via voltage-free (dry) contact closures, such as: Switch Relays or Timer Units.

This Digital Voice Unit is supplied with 8 pre-loaded Tones & Chimes. However, these can easily be replaced with the user’s own choice of bespoke Tones or Voice Messages by copying pre-recorded audio WAV files onto the unit’s internal SD Card. Want to make regular announcements at different times or to a timed schedule? Pair up the LB8A message unit with a TU8A Digital Timer Unit and you’re good to go!

Product Features:

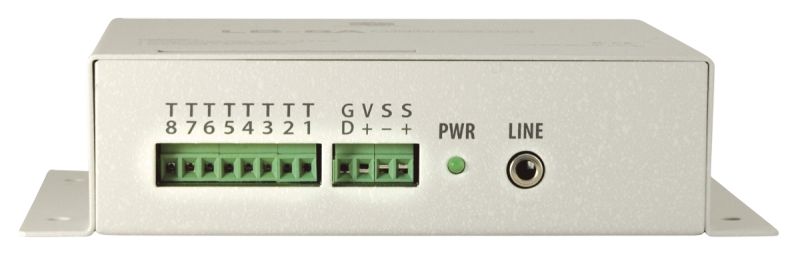

  • Secure, rugged steel housing
  • Line Level output via 3.5mm Audio Jack
  • Termination via simple Screw Terminals
  • 12-30V DC powered (Supplied Plugtop PSU)
  • New ultra-compact unit for rack of wall mounting

Specifications:

LB-8A

File Type

FAT32 (Windows WAV, 8 Bit, Mono)

Sample Rate

6, 8, 11. 025, 16 or 22.05 KHz

Storage Type/Size

SDHC @ 4GB – Internally-mounted

Message Activation

  • 8 x Voltage-free Contacts

Audio Output

Line level, unbalanced (via 3.5 mm Jack Socket)

Switched Output

  • 1 x Voltage-free Contact

Power

PSU @ 15V DC

Dimensions

140 mm W x 85 mm H x 35 D mm

Net Weight

0.33 kg

Accessories (Included)

N/A

Accessories (Optional)

N/A

Partnered Products

To view the LB8A’s partnered product, click here.

To view additional information, be sure to check out the Data Sheets below.

Data Sheets

Data Sheet
Brochure

Additional information

Manufacturer

Clever Little Box
